OVAL LED DRIVING LIGHT WITH ECE APPROVAL HZ-7010

Huazhao Part #: HZ-7010

  1. Certification: ECE R10, R148, R149, CE, ROHS
  2. Operating Voltage: 10-30V
  3. Theoretical effect (w) :80W
  4. Consumption (w):52W- 70W
  5. LED qty: High beam 8pcs 10W ,Position Light 30pcs 0,5W
  6. Theoretical lumen: Driving Light 5500LM
  7. Effective Lumen: Driving Light 3000LM
  8. Functions:Driving light, Amber position light, White position light
  9. Beam Pattern :Combo

Description

PRODUCTS  SPECIFICATION:

  • Certification: ECE R10, R148, R149, CE, ROHS
  • Operating Voltage: 10-30V
  • Theoretical effect (w) :80W
  • Consumption (w):52W- 70W
  • LED qty: High beam 8pcs 10W ,Position Light 30pcs 0,5W
  • Theoretical lumen: Driving Light 5500LM
  • Effective Lumen: Driving Light 3000LM
  • Functions:Driving light, Amber position light, White position light
  • Beam Pattern :Combo
  • IP-class:IP67K
  • Color housing :Black
  • Color lens:Clear
  • Color LED´s :White/Amber
  • Beam pattern:Combo
  • Position light:YES
  • Connection:Cable
  • Cable length (mm):250
  • Material bracket :Stainless steel
  • Material housing:Aluminium
  • Material lens:Polycarbonate

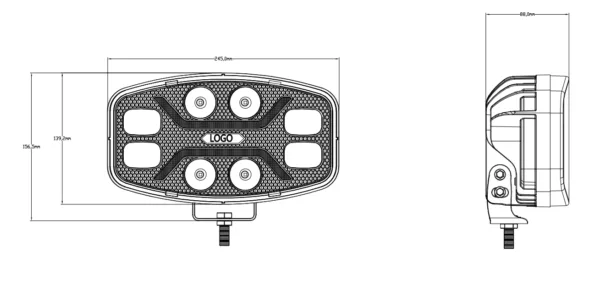

  • Length (mm) :245
  • Depth (mm):88
  • Height (mm):139.2
  • Operating temperature:-40 – +60°C



PRODUCTS  APPLICATION:

Huazhao ‘s LED Driving lights are suitable for various truck types, such as the following:

Scania : Next Generation R&S , P-G-R SERIES 2009-ON , P-G-R SERIES to 2009 ,4 Series ,2-3 Series ect…

Volvo :  Volvo FH V4/V5 ,  Volvo V5 FM, Volvo FM/FH V2facelit , Volvo FM/FH Version 2 , Volvo FM Euro6 , Volvo FE , Volvo FL 2006-on , Volvo Euro 6 FMX , Volvo FMX ect…

DAF : New Generation DAF , XF106 Facelift , XF106 , XF105 , XF95, CE Euro6 , CF 2008-on, CF65,75,85 2001-on , LF Euro6 , LF2001-on ect…

Mercedes : Actros 2012-on, Actros MP3 , Actros MP2 , Arocs , Axor ,Atego ect…

MAN :TG3 , TGX Euro6 , TGX , TGA , TGL/TGM , TGS ect…

Renault : T Range, C Range , Magnum DXI , Premium/Lander , Midlum ect…

Iveco :Iveco S-Way  , Iveco Stralis Cube + HIWAY

Hino 700
